high air pressure 6 inch dth hammer and bits for water well mining

Buy Dth Hammer,Dth Hammer And Bits,6 Inch Dth Hammer Product

$98.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

high air pressure 6 inch dth hammer and bits for water well mining
high air pressure 6 inch dth hammer and bits for water well mining
high air pressure 6 inch dth hammer and bits for water well mining
high air pressure 6 inch dth hammer and bits for water well mining
high air pressure 6 inch dth hammer and bits for water well mining
high air pressure 6 inch dth hammer and bits for water well mining

high air pressure 6 inch dth hammer and bits for water well mining

Buy Dth Hammer,Dth Hammer And Bits,6 Inch Dth Hammer Product

  • Product Code:62513475039
    MOQ50

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

DTH Hammers


High air pressure DTH hammer:
1.High air pressure DTH hammer size from 3" to 12"(76mm-304mm)
2.Shank types including COP, QL,DHD, MISSION,HD,IR, SD,TD, etc.
3.Connect Thread : API 2 3/8" , API 3 1/2 , Reg-6 5/8"Reg etc.

Low Air Pressure DTH hammers:
1.CIR series Low air pressure DTH hammer includes: CIR55, CIR65, CIR70, CIR80, CIR 90, CIR110, CIR110W, CIR150, CIR170, CIR200W etc.
2.J series Low air pressure DTH hammer includes: J60C, J70C, J80B, J100B, J150B, J170B, J200B

R.C.(Reverse Circulation) hammmers
1.R.C. hammers includes:RC45,RC55,RC65,PR52 etc.


DTH Hammer Advatages
1. Fast drilling speed and low air consumption due to the special inner structure.
2. Smooth performance and long service due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple, reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multi—head thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe

SPECIFICATIONS
 Low Air Pressure DTH Hammer Technical Data
DTH hammer type
CIR76
CIR90
CIR110
CIR130
CIR150
Top Sub Thread
F48x10PIN
F48x10PIN
API 23/8" RGE BOX
API 23/8" RGE BOX
F70x10PIN
Bit Diameter
76(mm)
90-120(mm)
110-150(mm)
130-175(mm)
150-200(mm)
Working Pressure
4-10(bar)
5-10(bar)
5-10(bar)
5-10(bar)
5-10(bar)
 High Air Pressure DTH Hammer Technical Data
DTH hammer type
DHD35
DHD340
DHD350
DHD360
DHD380
Top Sub Thread
API 2 3/8” Reg
API 2 3/8” Reg
API 2 3/8” Reg
API 3 1/2"Reg
API 4 1/2"Reg
Bit Diameter
Φ90-110
Φ110-135
Φ135-155
Φ155-190
Φ195-254
Working Pressure
1.0-1.5Mpa
1.0-2.5Mpa
1.0-2.5Mpa
1.0-2.5Mpa
1.0-2.5Mpa
Applications

Mining

Water well drilling

Quarrying

Anchoring

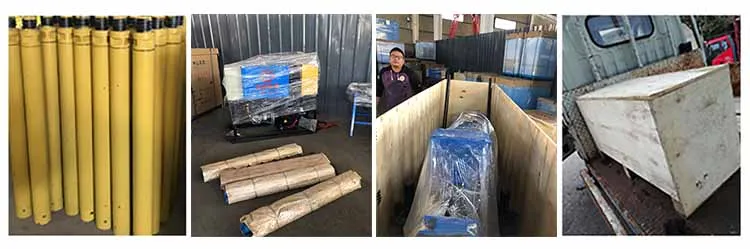

Product packaging

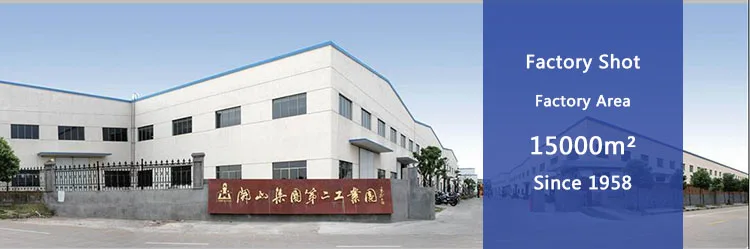

Company Profile
Quzhou Jugong Machinery Co.,Ltd.specialized in machine R&D and manufacturing for 10 years. Our product cpvers air compressors,jack hammer,drill rig,drill rig,parts,booster,tunnel shotcreting machine and other machinery hardware product etc.
Our products are popular in more than 50 areas, such as Europe , South America, Southeast Asia, the middle East and etc.
We have advanced new design every year. We are always ready to provide quality products and good after-sales service for every customer. As Chinese professional machinery manufacturer and exporter, we sincerely hope to eastablish business relations with your esteemed corporations.
Certifications
Our Service
FAQ


Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.

Recommend Products
We can supply all series of drilling equipment and drilling tools
Our products use high-quality raw materials, utilizing advanced craft technologies and imposing strict quality inspection.
Product range covers:Down the hole hammer and bits(dth hammers and dth bits),drill pipes, threaded drilling bits, reverse circulation hammers and bits, shank adapters and coupling sleeves, drilling rig, air compressor and spare parts for drill equipment.

All products are interchangeable with various products manufactured by Atlas Copco.
Quick Details
ConditionNew
Warranty 3 months
Applicable Industries Construction works , Energy & Mining
Local Service Location None
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2020
Place of Origin Zhejiang, China
Brand Name Jugong
Type DRILL BIT
Machine Type Drilling Equipment
CertificationISO9001
MaterialCarbide
Processing Type Forging
Use Ore Mining
Package Neutral Packing
ColorYellow/blue/custom
MOQ 1 Pc
