diesel engine hydraulic rock splitter wedges

Buy Rock Splitter Wedges,Stone Splitter Machine,Stone Rock Splitter For Splitting Granite Product

$1,500.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

diesel engine hydraulic rock splitter wedges
diesel engine hydraulic rock splitter wedges
diesel engine hydraulic rock splitter wedges
diesel engine hydraulic rock splitter wedges
diesel engine hydraulic rock splitter wedges
diesel engine hydraulic rock splitter wedges
diesel engine hydraulic rock splitter wedges

diesel engine hydraulic rock splitter wedges

Buy Rock Splitter Wedges,Stone Splitter Machine,Stone Rock Splitter For Splitting Granite Product

  • Product Code:1600602689974

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Overview

Quick Details
Type:
Rock Splitter
Applicable Industries:
Building Material Shops, Construction works , Energy & Mining, Other
Weight (KG):
200
Showroom Location:
None
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Pump
Condition:
New
Application:
Splitting
Motor Type:
AC Motor
Place of Origin:
ShanXi, China
Brand Name:
JingongZhuoDa
Dimension(L*W*H):
450*410*700MM
Warranty:
1 Year
Name:
Hydraulic Rock Splitter
Pump pack type:
Electrical or Diesel engine oil pump
Splitting Diameter:
42-46mm
Splitting depth:
500mm
Work pressure:
55-60Mpa
Usage:
Splite Rock
Item:
Stone Splitter Wedges
Working Medium:
46# Hydraulic Oil
Key word:
Hydraulic Rock Splitter
Supply Ability
Supply Ability
8000 Unit/Units per Month rock splitter
Packaging & Delivery
Packaging Details
Packed by standard import & export wooden cases or carton boxes.
Port
Qingdao Shanghai
Lead Ti
Product Description

JingongZhuoDa is specialized in the rock splitting machine, including the small hydraulic rock splitter and excavator mounted rock splitter. Rock splitter is a kind of machine for splitting rock. It can split all kinds of natural stones, rock, granite, marble mining & quarrying and also break concrete. The rock splitting tool is mostly used in construction, decoration, engineering construction, ore mining, secondary disintegration of large ore, partial and total removal of concrete components. Safety, fast speed, adjustable oil pressure.





Work Principle

Hydraulic splitter is composed of two parts: pump station(electric type or the diesel engine type) and splitter. When working, the high-pressure oil from pump station drives the cylinder, which generates huge thrust. The middle wedge in the wedge group is pushed forward, and the reverse wedge is pushed to both sides to split the splitted object.

The concrete implementation steps are as follows:

1. First drill hole in stone.



2. Then insert hydraulic cylinders which is contain wedge and feathers. Start engine to provide hydraulic pressure.

3. Repeat the process until the whole structure is fractured into smaller sections and ready for removal.

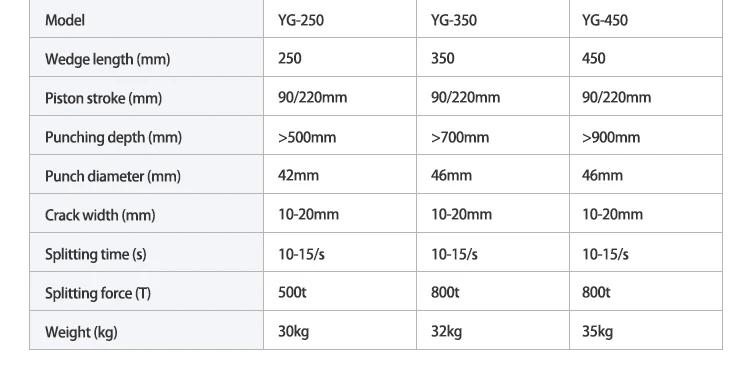

Technical Parameters

1. Quarry splitter machine can be used for open-pit stone mine, mining and excavation;
2. Remove redundant reinforced concrete structures, concrete machine beds and plinths, broken and demolished;
3. It is a stone-breaking tool in road-building;
4. Concrete breaker, concrete wall, concrete block splitting, demolition and crushing;
5. Blocks of stone, secondary decomposition;
6. Rock breaking tools for building foundation, rock broken;
7. Demolition equipment for tunnel, rock breakage, tunneling;
8. Tower Foundation, Shaft Excavation.

Application

Notes

1. Drill hole 40-42mm using the rock drill, drilling depth is not less than 50cm (otherwise the middle wedge is easy to break). YG-350 type drill hole with 46 bits. After drilling, it is necessary to clear the hole, clear the slag and water, and use No. 46 hydraulic oil.
2. Don't shake the splitting gun before the hydraulic oil is returned to the oil. When pulling out the splitting gun, be careful not to shake left and right. Don't use it as a crowbar to avoid damaging the splitting block.
3. Clean up the splitting block and the intermediate wedge in time after use. Do not use water to avoid rust. Use butter to smear the splitting block and the intermediate wedge before using the splitting gun to maintain lubrication.
4. When the splitter can't pull out, the splitting stones are too big and the cracks are too small to be stuck, and they are broken with brazes.

Other matters needing attention please contact us.





Quick Details
ConditionNew
Warranty 1 Year
Applicable Industries Farms, Home Use, Construction works , Energy & Mining
Weight (KG) 150
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2022
Place of Origin Shanxi, China
Brand Name JinGongZhuoDa
Dimension(L*W*H)450*410*700MM
Motor Type AC Motor
Type Rock Splitter
Application stone ,concrete
Warranty of core components 1 Year
Core Components Gear
