Top Quality Dth Rock Drill Bit For Coal Tunnel Mining

Buy Dth Rock Drill Bit,Dth Rock Drill Bit For Coal Tunnel Mining,Top Quality Dth Rock Drill Bit Product

$1,500.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

Top Quality  Dth Rock Drill Bit For Coal Tunnel Mining
Top Quality  Dth Rock Drill Bit For Coal Tunnel Mining
Top Quality  Dth Rock Drill Bit For Coal Tunnel Mining
Top Quality  Dth Rock Drill Bit For Coal Tunnel Mining
Top Quality  Dth Rock Drill Bit For Coal Tunnel Mining
Top Quality  Dth Rock Drill Bit For Coal Tunnel Mining
Top Quality  Dth Rock Drill Bit For Coal Tunnel Mining

Top Quality Dth Rock Drill Bit For Coal Tunnel Mining

Buy Dth Rock Drill Bit,Dth Rock Drill Bit For Coal Tunnel Mining,Top Quality Dth Rock Drill Bit Product

  • Product Code:1600444534731

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Products Description
DTH drilling bit is our company main product. After many years search, we have rich experience in development and manufacture which adopted high-quality raw materials, advanced craft technology and passed through strictly inspection, manufacturing high quality products.
Details Images

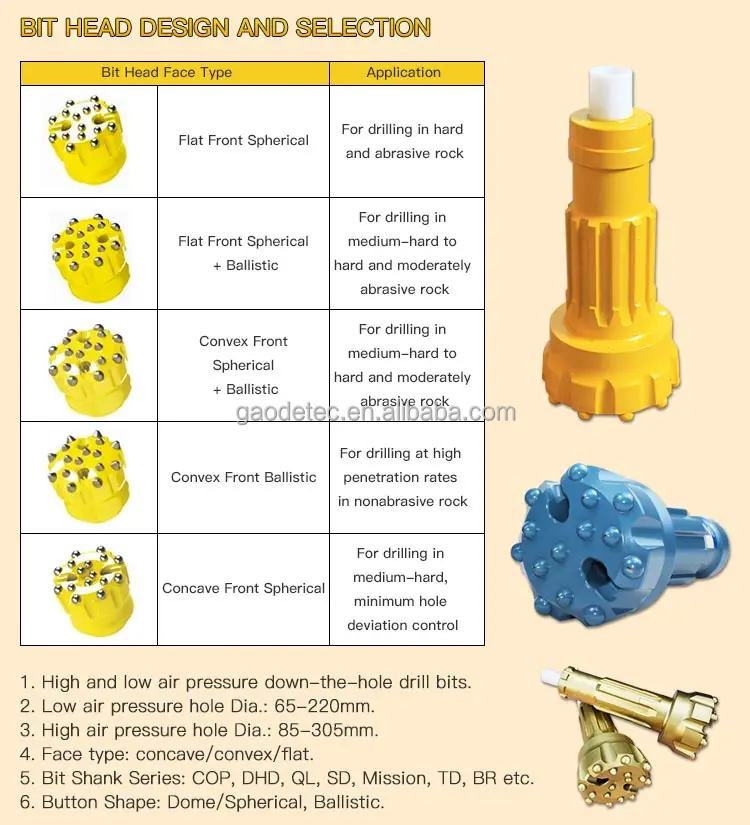

1. High and low air pressure down-the -hole drill bits.2. Low air pressure hole Dia.: 65-220mm.3. High air pressure hole Dia.: 85-305mm.4. Face type: concave/ convex/ flat.5. Bit Shank Series: COP, DHD, QL, SD, Mission, TD, BR etc.6. Button Shape: Dome/ Spherical, Balistic.
Technical Data
Bit Shank Series
Bit Size(mm)
Splines Quantity
Matchable Hammer Model
DHD3.5
90;110;105
8
IR3.5
DHD340A
108;115;121;127;130
8
IR340
DHD350R
140;148;152
8
IR350
DHD360
155;159;165;178;190;203
8
IR360
DHD380
194;203;219;222;254;270;305
10
IR380
QL40
108;115;121;127;130
10
QL40
QL50
140;148;152
12
QL50
QL60
155;159;165;178;190;203
12
QL60
QL80
194;203;219;222;254;270;305
16
QL80
SD4
108;115;121;127;130
8
SD4
SD5
140;148;152
8
SD5
SD6
155;159;165;178;190;203
8
SD6
SD8
194;203;219;222;254;270;305
8
SD8
1. All diameters as above are only our standard diameters, but other diameters are also available upon request.2. The unit weight for each size is for reference only.3. Face design, buttons shape, buttons configuration and flushing holes number must be confirmed when the order is confirmed.4. Please be cautious when order some bigger diameter of button bits since some bigger diameters are over sized.5. Other shanks bits are also available as per request.
Product application
Packaging&Shipping
Related Product
Company Profile
Gaode Equipment Co., Ltd. is one of the most specialized high-air-pressure DTH drilling equipment developers and manufacturers in China. Manufacturing and supplying a varied range of high, medium, and low air pressure hammer and bit, API thread drill pipe, eccentric & symmetric casing system, and hydraulic top hammer products including tapered button bit, coupling sleeve, shank adapter, etc.
Gaode make products which are perfectly compatible with the famous brand such as Atlas Copco, Ingersoll-Rand, Sandvik and other well-known manufacturers with durability and long working life and which is widely used in varies industries including blasting holes drilling, mining, earthwork, well digging, construction foundation, etc.
With a high brand reputation, super quality reliability, and complete product variety, Gaode is where you can always find the best in your budget.
Contact Us

Contact us for best price and catalog of DTH bit

1. What is the hole depth and hole diameter you want to drill?2. What is the geology you want to drill, for hard rock, soil or others?3. What is the drilling machine model you have?
Quick Details
ConditionNew
Warranty 1 Year
Applicable Industries Energy & Mining
Weight (KG) 180
Showroom Location Malaysia
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2020
Place of Origin Henan, China
Brand Name Gaodetec
Type DRILL BIT, DTH Drill Bit
Machine Type Drilling Tool
Material Carbon steel
BrandGaodetec
Use Ore Mining
Application DTH Drilling
Color Customer's Requirement
Quality High Level
AdvantageHigh-efficiency
Feature High Efficiency Low Cost
MOQ 1 Piece
Keyword drill bit
