Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale

Buy Rock Splitter/core Rock Splitter/hydraulic Rock Splitter/hydraulic Rock Splitter Machine/rock Splitter,Hydraulic Stone Splitting Machine/hydraulic Rock Splitter For Sale/rock Splitting Equipment/hydraulic Rock Splitter,Mine Hydraulic Rock Splitter/rock Splitting Equipment/rock Splitter For Sale/big Gasoline Rock Breaker Product

$500.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale
Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale
Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale
Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale
Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale
Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale
Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale

Mine Hydraulic big gasoline rock breaker Rock Splitter Core Rock Splitter For Sale

Buy Rock Splitter/core Rock Splitter/hydraulic Rock Splitter/hydraulic Rock Splitter Machine/rock Splitter,Hydraulic Stone Splitting Machine/hydraulic Rock Splitter For Sale/rock Splitting Equipment/hydraulic Rock Splitter,Mine Hydraulic Rock Splitter/rock Splitting Equipment/rock Splitter For Sale/big Gasoline Rock Breaker Product

  • Product Code:1600607584086
    MOQ2
  • Size100 x 100 x 100 cm
    Weight:68 kg
Buy Samples - $500.00 / set. 1 set (Min.Order) :Buy Samples

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Product Description

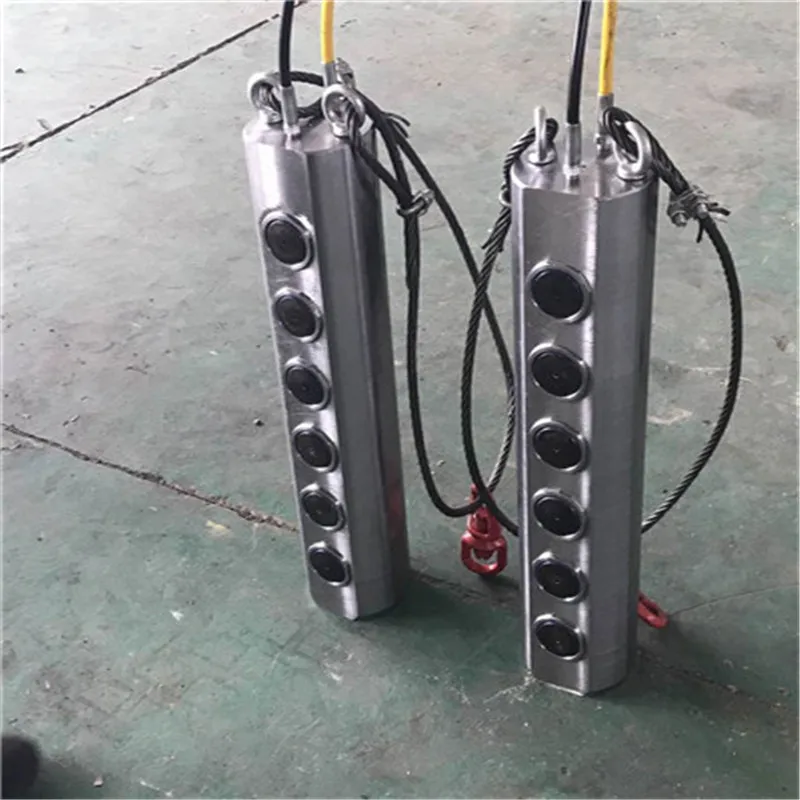

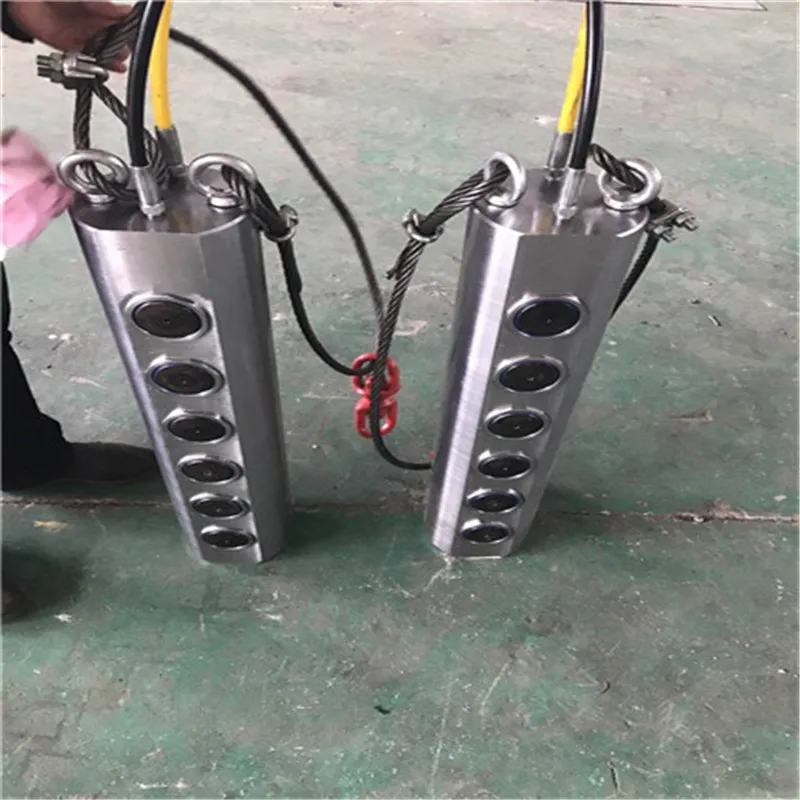

Working principle of hydraulic splitting rod
It is composed of a cylinder, 10 pistons or multiple plungers, multiple seals, multiple high-pressure oil pipes and several major components. Divided into an oil inlet pipe and an oil return pipe. The piston of the hydraulic rock breaker sticks out when the oil enters. This is a working process, that is, the time for the rock to break. Its power source is a hydraulic power station that transmits hydraulic oil through oil pipes, which can reach 100mp, with a theoretical splitting force of 3000t. A single root is 30kj, and a power station can be equipped with 6 high. The standard configuration is 4 pieces.
Specification
Technical Parameter
model
Drilling diameter
Drilling depth
Crack width
Split time
Theoretical disintegration

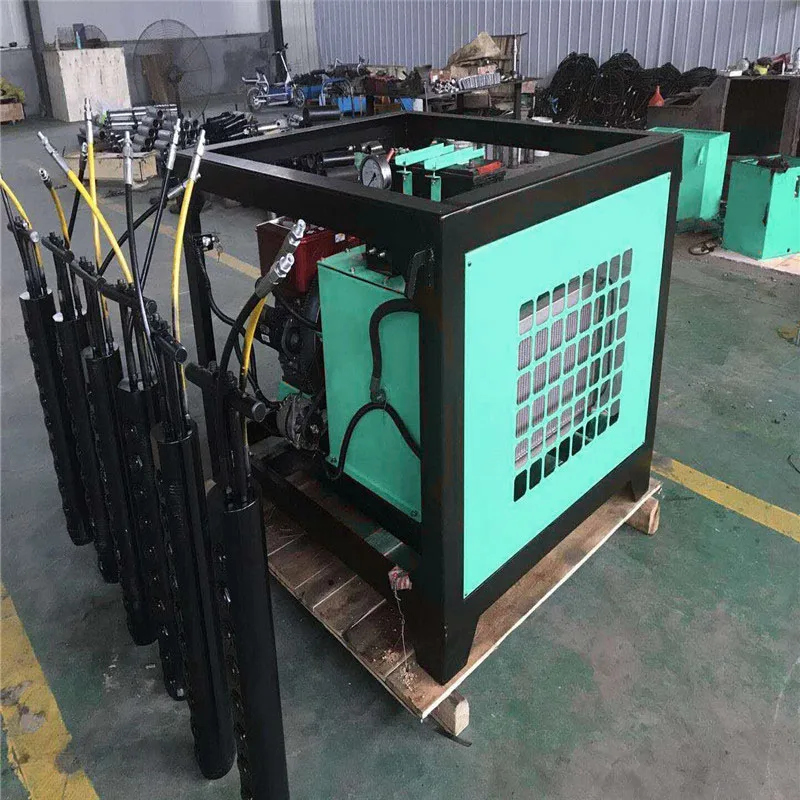

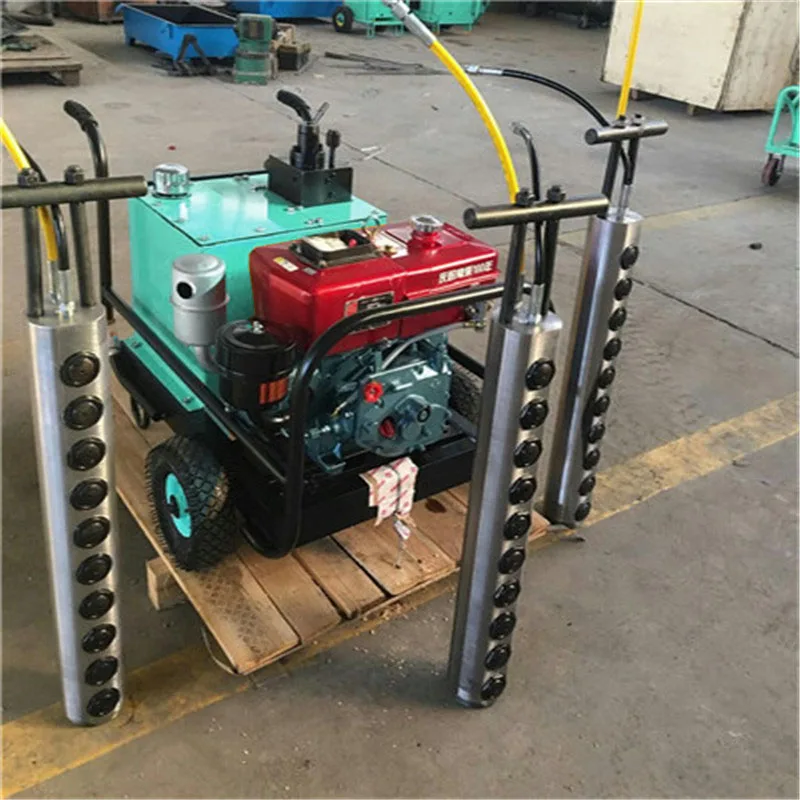

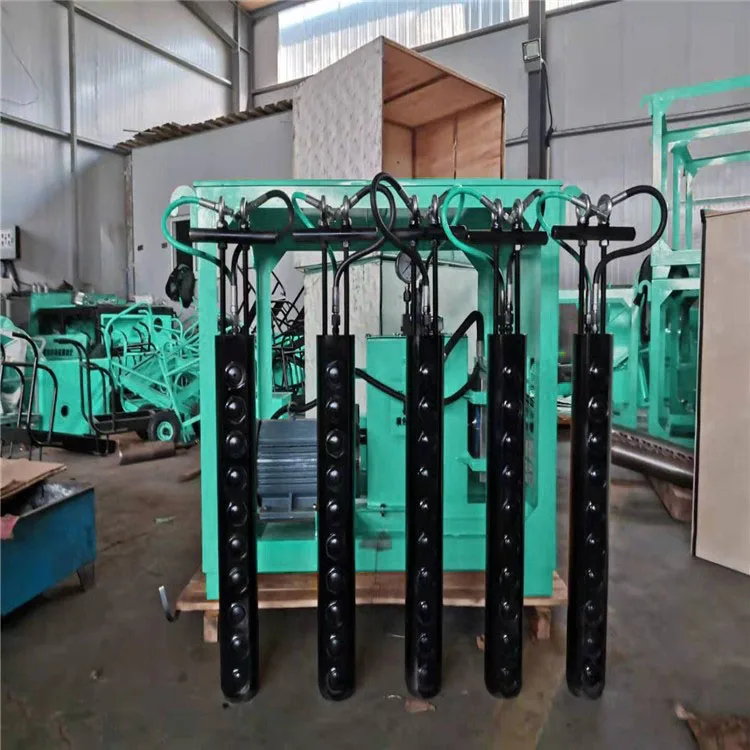

Pump station
Electric

4KW
5.5KW
7.5KW
diesel fuel
6horsepower
8horsepower

18horsepower
PXQ-110
110mm
1.2-1.5m
2-3cm
30-40s
2000-3000T
PXQ-130
130mm
1.2-1.5m
2-3cm
30-40s
2500T-3500T
PXQ-150
150mm
1.2-1.5m
2-3cm
30-40s
3500T-4500T
PXQ-180
180mm
1.2-1.5m
2-3cm
30-40s
4500T-5000T

Product Advantages

✔️ Compared with cement expansion agent, the waiting time for mining rock is too long, the speed of mining rock is too slow,manual drilling, the workload is large, but the amount of space cannot be improved. Can not be reused.
✔️ The hydraulic splittingmachine is also a high-quality equipment produced by our company.
✔️ It is only suitable for small volume stone mining. As far as drilling is concerned, the hydraulic splitting machine and manual hole drilling can only drill 46 small holes.
✔️For cracking rods, machine punching, 180 large holes are required. Rock mining speed is fast, cost saving, rock mining silently, rock blasting hydraulically, good equipment.
The main areas of hydraulic splitting rods
Suitable for silent mining of various hard rocks, granite, volcanic rock, quartzite, basalt, quartz porphyry, siliceous schist, sandstone, limestone, marble, dolomite, pyrite, etc. A large amount of stone is mined silently, the breaking hammer cannot be moved, the expansion agent cannot be separated, the speed of the splitting machine is slow, and the hydraulic splitting rod is a good choice.
Applicable Materials
Suitable for limestone, iron ore, basalt, granite, river pebbles, gold mine, etc.
If you need our products, please contact us, this is my WhatsApp. Or you can directly click the blue font below to send an inquiry, we will help you make more money.

WhatsApp:+8617739786040
Company Profile
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well
drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.

3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.

4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our
engineers to your workplace and provide training for your employees.

5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
Quick Details
ConditionNew
Warranty 1 Year
Applicable Industries Building Material Shops, Manufacturing Plant, Energy & Mining, Other
Weight (KG) 120
Showroom Location None
Video outgoing-inspection Provided
Machinery Test Report Provided
Marketing Type New Product 2022
Place of Origin Henan, China
Brand Name HANFA
Dimension(L*W*H)1150*180*310mm
Motor Type AC Motor
Type Rock Splitter
Crack width 2-3cm
Product name Rock Splitter Machine
Application Rock & quarry stone cutting, rock/stone splitter
Power4.5kw
Warranty of core components 1 Year
ColorCustomerized
Core Components Engine, Motor
After sale Service Life-long Service
Drilling Depth 1.2-1.5m
Advantage High Effiency
Installation Under Engineer's Guide
ModelPXQ-130
Spare parts supply Lifelong Time
