DTH Drill Rod

Buy Dth Drill Rod Product

$1,000.00

Have chosen: There are no options selected

Start To Order

Add To Cart Successfully!

DTH Drill Rod
DTH Drill Rod
DTH Drill Rod
DTH Drill Rod

DTH Drill Rod

Buy Dth Drill Rod Product

  • Product Code:62564225310
    MOQ1020

If you have your own design, please contact us, there will have a professional customer service to communicate with you.

Don't have your files right now?No worries, Check out our art tips for more information.

If over 500pcs, mass production will start until pre-production sample has been approved.

Est. 7 days production

Product Description
Advantages
1. DTH drill rod is made of high-quality materials, and the heat treatment of materials is processed with integrated
multi-function.
2. All threads are equipped with thread standards that comply with international standards. All the thread processing uses
professional CNC machining.
3. The inner end of the rod body is thickened to greatly increase the strength of the weld joint. After friction welding,
tempering is performed. The quality of the rod is stable and reliable, and the service life is greatly extended.
Technical Data
Thread
Diameter(mm)
Length(mm)
Wall thickness range(mm)
Upsetting form
API 2-3/8REG
76
1000-6000
4-10











Internal upset
API 2-3/8REG
83
1000-6000
4-10
API 2-3/8REG
89
1000-6000
4-10
API 2-7/8REG
102
1500-6000
6-12
API 3-1/2REG
114
1500-6000
6-12
API 3-1/2REG
127
1500-6000
6-12
API 3-1/2REG
133
1500-6000
6-12
API 4-1/2REG
140
1500-6000
6-12
CUB 21#
89
1000-6000
4-10
CUB 21#
102
1000-6000
6-12
CUB 24#
102
1000-6000
6-12
CUB 28#
114
1000-6000
6-12
CUB 28#
127
1000-6000
6-12
Z 2-1/2
102
1500-6000
6-12
DIBH 3-1/8
102
1500-6000
6-12
DIBH 3-1/2
114
1500-6000
6-12
Related Products
Company Introduction

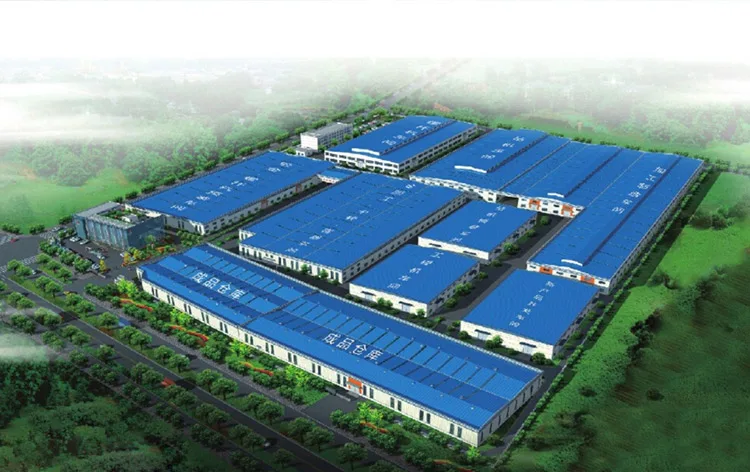

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research,manufacture and market. Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig, core drilling rig, engineering drilling rig, DTH drilling rig,
horizontaldirectional drilling rig, etc. These machines are mainly used in geological prospecting, exploration of railway and
highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
1. More than 20 years of experience
The factory is located in Henan Province, China. We are very welcome to visit our factory. If
you need it, we will arrange a pick-up.
2.Top production team
The transportation and packaging will be packaged in international standards. If you have special packaging requirements, we will give you the most suitable solution.
3.Our Service
- New machine provides technical trair.
- Once anything goes wrong with the machine by normal using, our technical person must appear at the first time no matter where you are.
- When the machine should be maintained, you will receive the reminding from us.
- According to different geological conditions, we will recommend different construction plans for you
- Remind you which are wearing parts, so you can prepare enough.
- 24 hours respond to your quality problem.
Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.
Services provided during the sale
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our
clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients;
3)Detailed technical assessment;
4)Design of process and equipment layout.
After-sale services
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipment;
3) Training the first-line operators on site;
4)Supplying spare parts with cost.
FAQ
1, Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2, Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3, How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4, Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5, What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6, How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
Our Customers
Quick Details
ConditionNew
WarrantyUnavailable
Applicable Industries Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining
Local Service Location Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Uzbekistan, Tajikistan
Showroom Location None
Place of Origin China
Brand Name HF
Type Drill Rod
Machine Type Drilling Tool
Certification ISO CE
Material Special Steel
Processing Type Forging
Wall Thickness Range 4-12mm
Use Coal Mining
Length1-6m/piece
Drill rod diameter 76-114mm
